The KinExA® Flow Cell is a capillary tube with a 20 Micron screen. Proper Flow Cell alignment provides for optimal performance. For information on choosing the right Flow Cell see Flow Cell Selection and Information (HG214).

Flow Cell Replacement

• Open the Reflector Mount, and slide back the Retaining Clip. The old Flow Cell may be dislodged from the Flow Cell Groove.

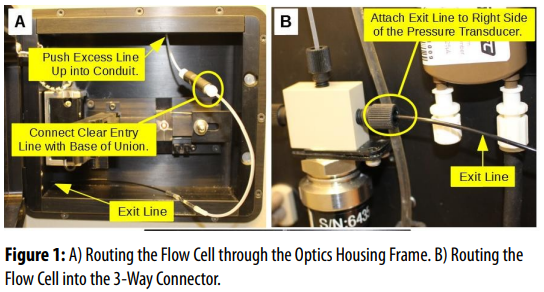

• Gently pull the clear Entry Line down from the hole in the top of the Optics Housing Frame until the Union is exposed. Unscrew the Flow Cell from the Union (Figure 1A). Discard the ferrule but keep the White Extra Short Nut (346205).
• Open the Plumbing Panel. Unscrew the colored Exit Line from the right side of the 3-Way Connector (Figure 1B). Discard the ferrule but keep the M6 Black Nut (346101). The Flow Cell is now completely detached from the instrument and may be removed and discarded.
• Thoroughly clean the Flow Cell Groove and the Reflector Mount with Denatured Alcohol and Kimwipes.
• Attach the clear Entry Line to the base of the Union using the Extra Short Nut and the new 1/16″ Tan Ferrule included with the new Flow Cell. Torque the Extra Short Nut to 15 in-oz using the 1/4″ Deep Socket (015902) and 15 in-oz Torque Wrench (024140). Route the clear Entry Line upwards through the hole in the top of the Optics Housing Frame until it is hidden from view (Figure 1A). For correct Ferrule installation, see Figure 4 and Figure 5.
• Route the colored Exit Line through the O-ring in the left side of the Optics Housing Frame; look for it to come out on the far right side of the Plumbing Panel.
• Attach the colored Exit Line to the 3-Way Connector using an M6 Black Nut and 1/16″ White Ferrule (Figure 1B).
• Apply a thin layer of Dielectric Grease onto the Flow Cell Groove and the Reflector Mount before securing the Flow Cell with the Retainer Clip and closing the Reflector Mount.

Flow Cell Alignment

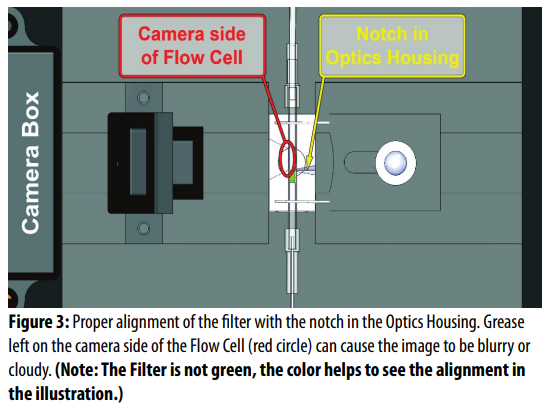

• Align the top of the filter with the notch in the Optics Housing represented in green as shown in Figure 3.

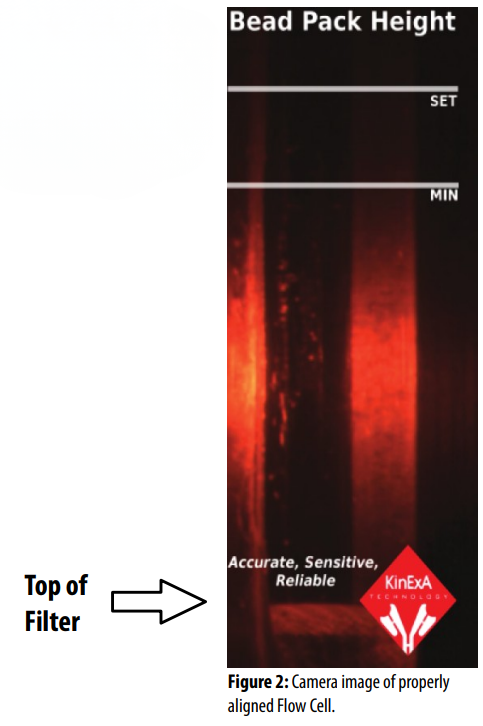

• Look at the camera image and fine tune the alignment so that the top of the filter is in line with the corner of the KinExA Technology Logo (Figure 2).
• If the camera image appears blurry or cloudy, wipe off the Flow Cell with a Kimwipe to remove excess Dielectric Grease on the camera side of the Flow Cell (red circled area in Figure 3).

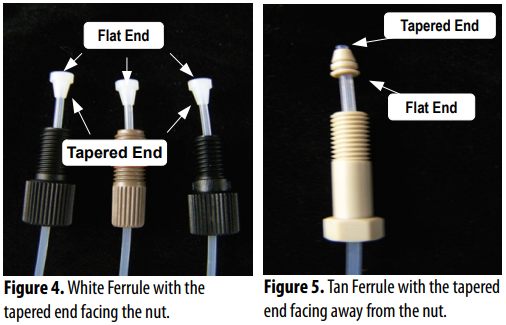

Note: The White Ferrule slides onto the tubing with the tapered end toward the nut and the flared end toward the Valve Port. The Tan Ferrule slides onto the tubing with the tapered end toward the Valve Port and the flared end toward the nut. When installing and tightening these fittings, be sure to push the tubing all of the way into the Valve Ports (Figures 4 & 5).
